# ArcGIS Pro

## Requirements

* ArcGIS Pro (version 1.1 or later)
* A GeoPackage dataset

{% hint style="info" %}

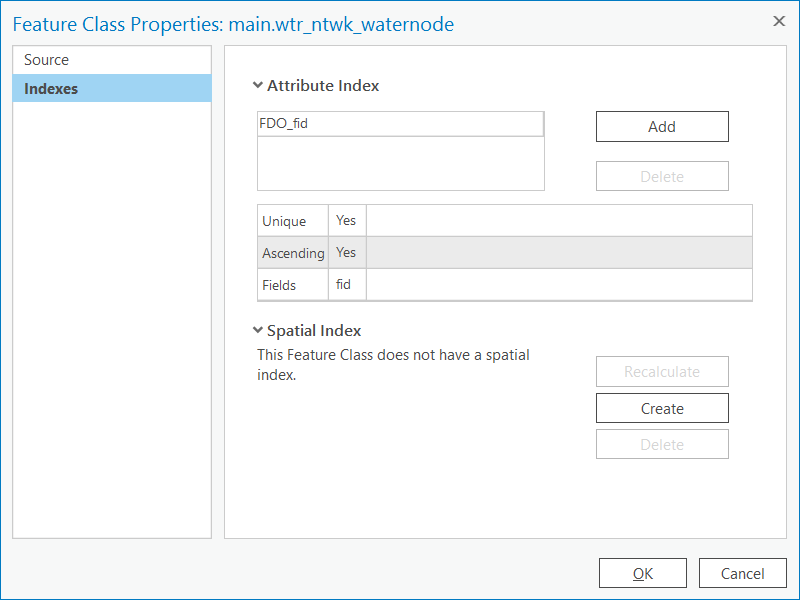

Certain versions of ArcPro (for example, version 2.5) require GeoPackages to have a spatial index added before the data can be viewed on the map. This can be done in the Catalog by opening the Feature Class Properties window within the 'Indexes' page.

<img src="https://170091638-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0pZjHxkAvY7Mn6TqFBMD%2Fuploads%2Fb27FGVb8Hdy8qSQvYOuT%2FArcPro-Spatial-Index.png?alt=media&#x26;token=187d4371-f542-4732-b941-aceae9ea94cf" alt="Screenshot of the layer properties dialog in ArcPro." data-size="original">
{% endhint %}

## Instructions

These instructions were created using ArcGIS Pro version 2.5, but versions from 1.1 onwards will support GeoPackage.

{% stepper %}
{% step %}

### Open an existing project or create a new one

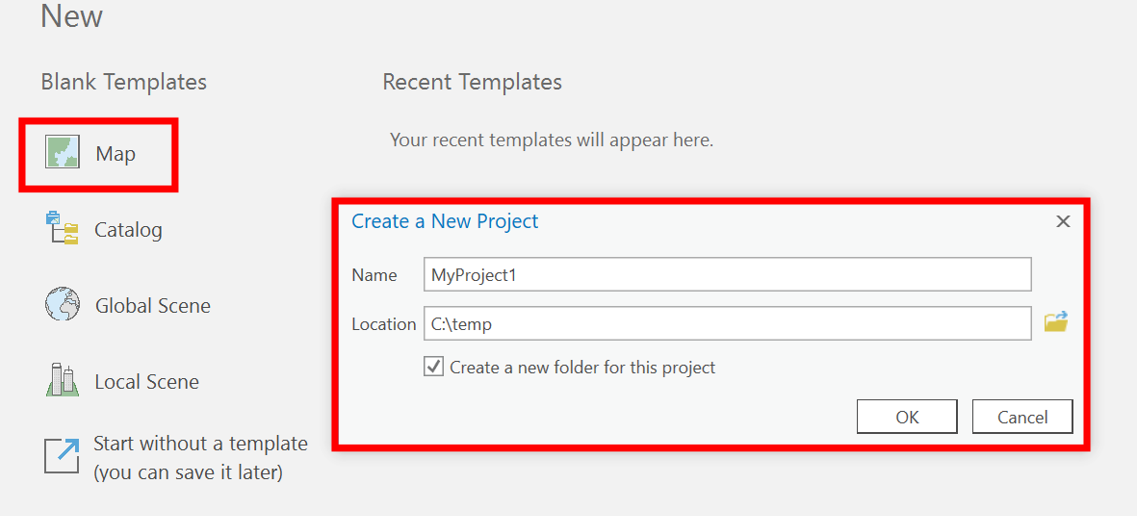

&#x20;To create a new project, select *Map* from the Blank Templates section, then enter a *Name* and a *Location* for the project in the Create a New Project section. Click *OK*.

<figure><img src="https://170091638-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0pZjHxkAvY7Mn6TqFBMD%2Fuploads%2FJX5jbyE7rEPFcHnXJcpJ%2Farcgispro1.png?alt=media&#x26;token=a99192ac-dc44-410d-84c7-6a95a7cb1e8c" alt="Screenshot showing how to create a new project in ArcGIS Pro."><figcaption><p>Screenshot showing how to create a new project in ArcGIS Pro.</p></figcaption></figure>
{% endstep %}

{% step %}

### Select *Map* > *Add Data from* the ribbon at the top of the project,&#x20;

<figure><img src="https://170091638-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0pZjHxkAvY7Mn6TqFBMD%2Fuploads%2FMsBGxuMe0chZXDz0XP6k%2Farcgispro2.png?alt=media&#x26;token=0e230aa6-90bc-4fa5-9203-cd2b72ba5dfe" alt="Screenshot of the Add Data button in ArcGIS Pro."><figcaption><p>Add Data button</p></figcaption></figure>

A dialog box will appear.&#x20;
{% endstep %}

{% step %}

### Adding a GeoPackage into ArcGIS Pro

Navigate to the GeoPackage to be added into ArcGIS Pro. Select the GeoPackage and click *Open*. This will open the GeoPackage to reveal the individual layers.

<figure><img src="https://170091638-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0pZjHxkAvY7Mn6TqFBMD%2Fuploads%2FB1kNOSB2QJWINJ5FBrDH%2Fagp-add-gpkg-2.png?alt=media&#x26;token=721a6cb8-2b23-4519-9618-45a8ff5afc68" alt="Screenshot of the Add Data dialog in ArcGIS Pro."><figcaption><p>Add Data dialog in ArcGIS Pro.</p></figcaption></figure>
{% endstep %}

{% step %}

### Select all of the relevant layers and click OK

The selected layers will then be added into ArcGIS Pro.

{% hint style="info" %}
More than one layer can be selected at any time by holding down the Ctrl (control) key and clicking on multiple layers.
{% endhint %}

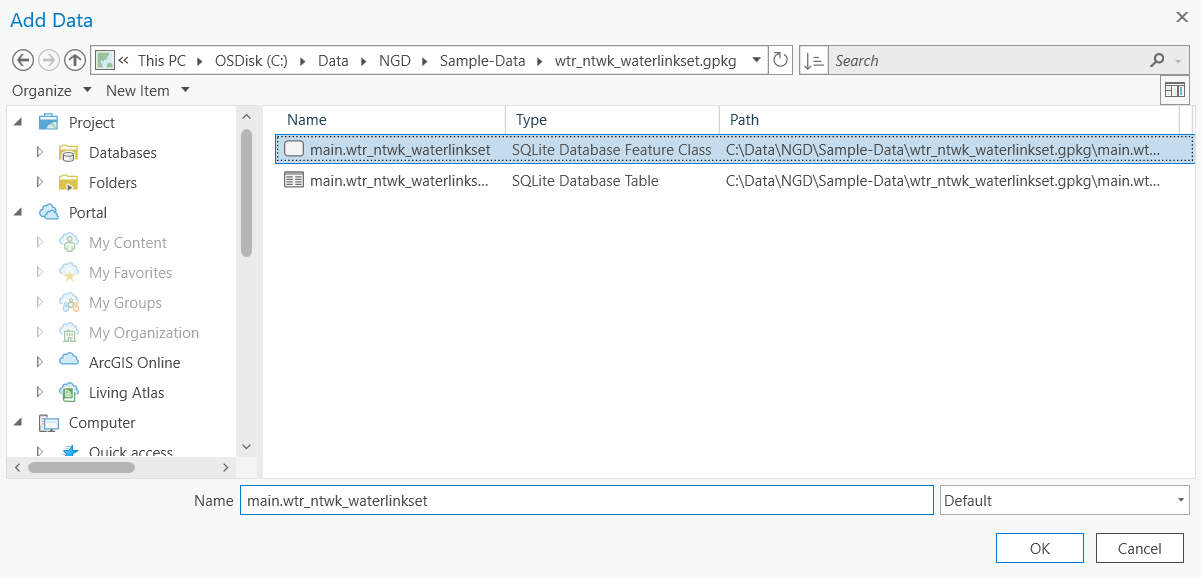

<figure><img src="https://170091638-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0pZjHxkAvY7Mn6TqFBMD%2Fuploads%2FRpdawQfWc2wr6KMvyRDX%2Fagp-add-gpkg-layer.png?alt=media&#x26;token=e72a3974-361f-46a4-bd7b-835a24ba4398" alt="Screenshot of the Add Data layer selection dialog in ArcGIS Pro."><figcaption><p>Add Data layer selection dialog in ArcGIS Pro.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

{% hint style="success" %}
The layers added into ArcGIS Pro will appear in the contents pane on the left-hand side of the project.
{% endhint %}
