Layers and styles

OS Maps API is available as EPSG:27700 (British National Grid which is applicable just for GB) and EPSG:3857 (Web Mercator which is a global coordinate system).

The API includes four OS styles: Road, Outdoor, Light (in both 27700 and 3857), and Leisure (in 27700).

Style
Projection
Layer Name
Tile Matrix Set

Road

EPSG:27700

Road_27700

EPSG:27700

Road

EPSG:3857

Road_3857

EPSG:3857

Outdoor

EPSG:27700

Outdoor_27700

EPSG:27700

Outdoor

EPSG:3857

Outdoor_3857

EPSG:3857

Light

EPSG:27700

Light_27700

EPSG:27700

Light

EPSG:3857

Light_3857

EPSG:3857

Leisure

EPSG:27700

Leisure_27700

EPSG:27700

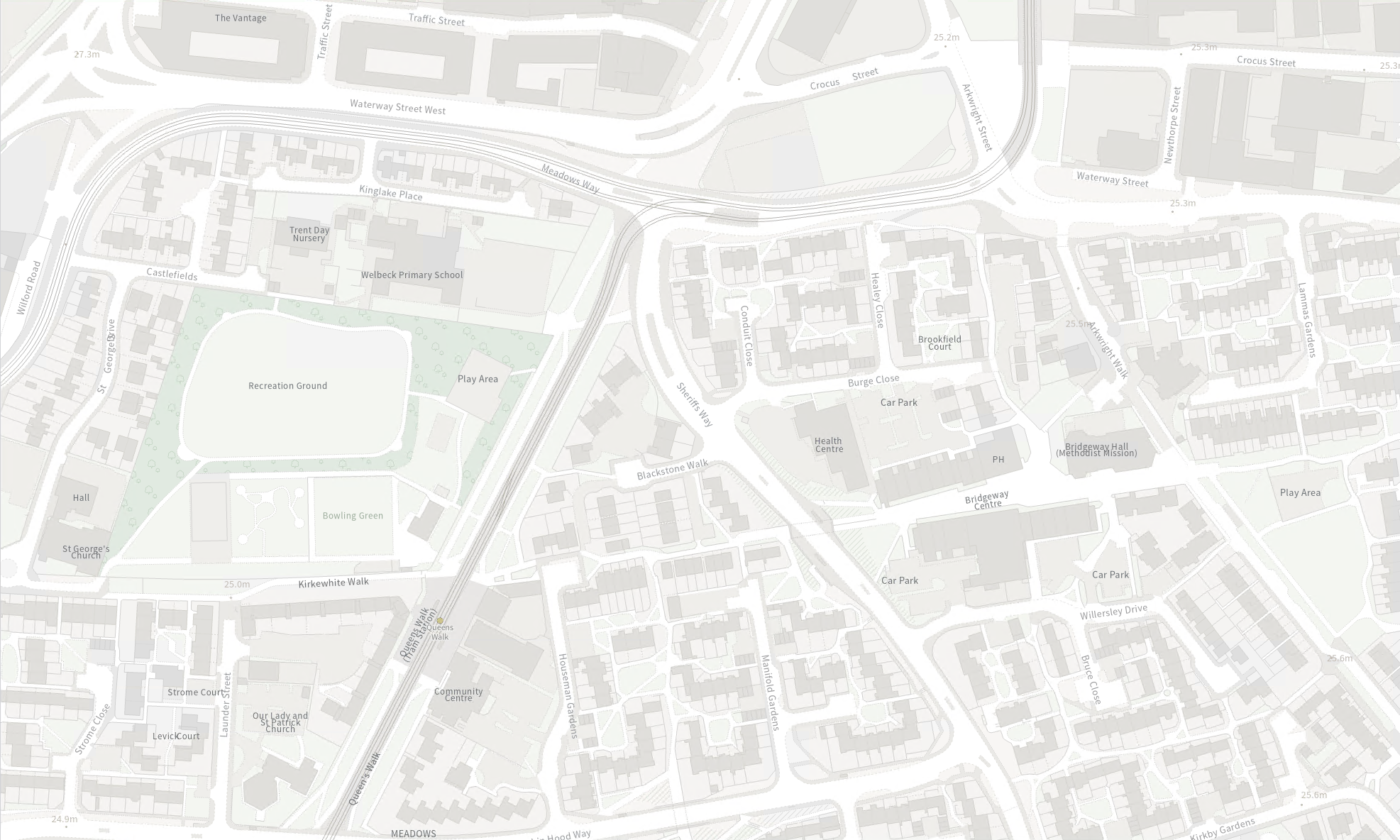

Cover

Light

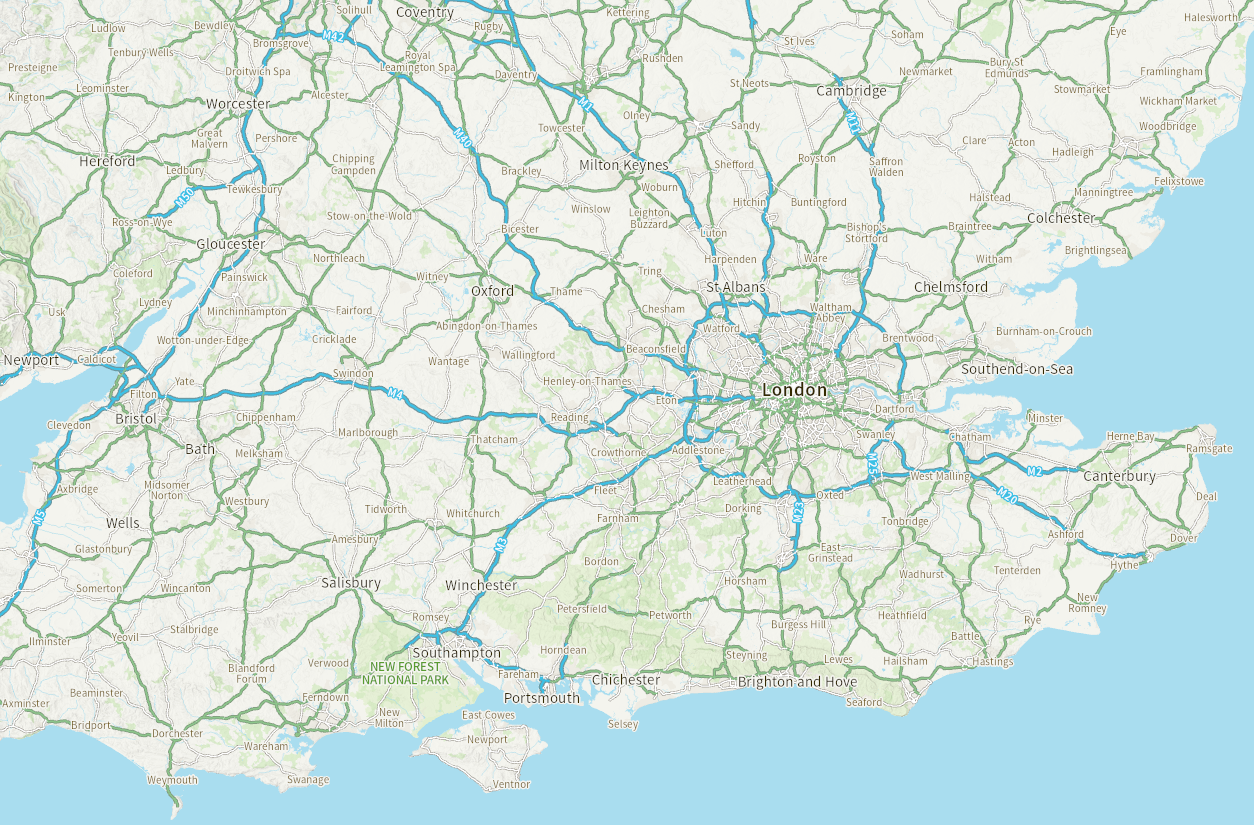

Cover

Outdoor

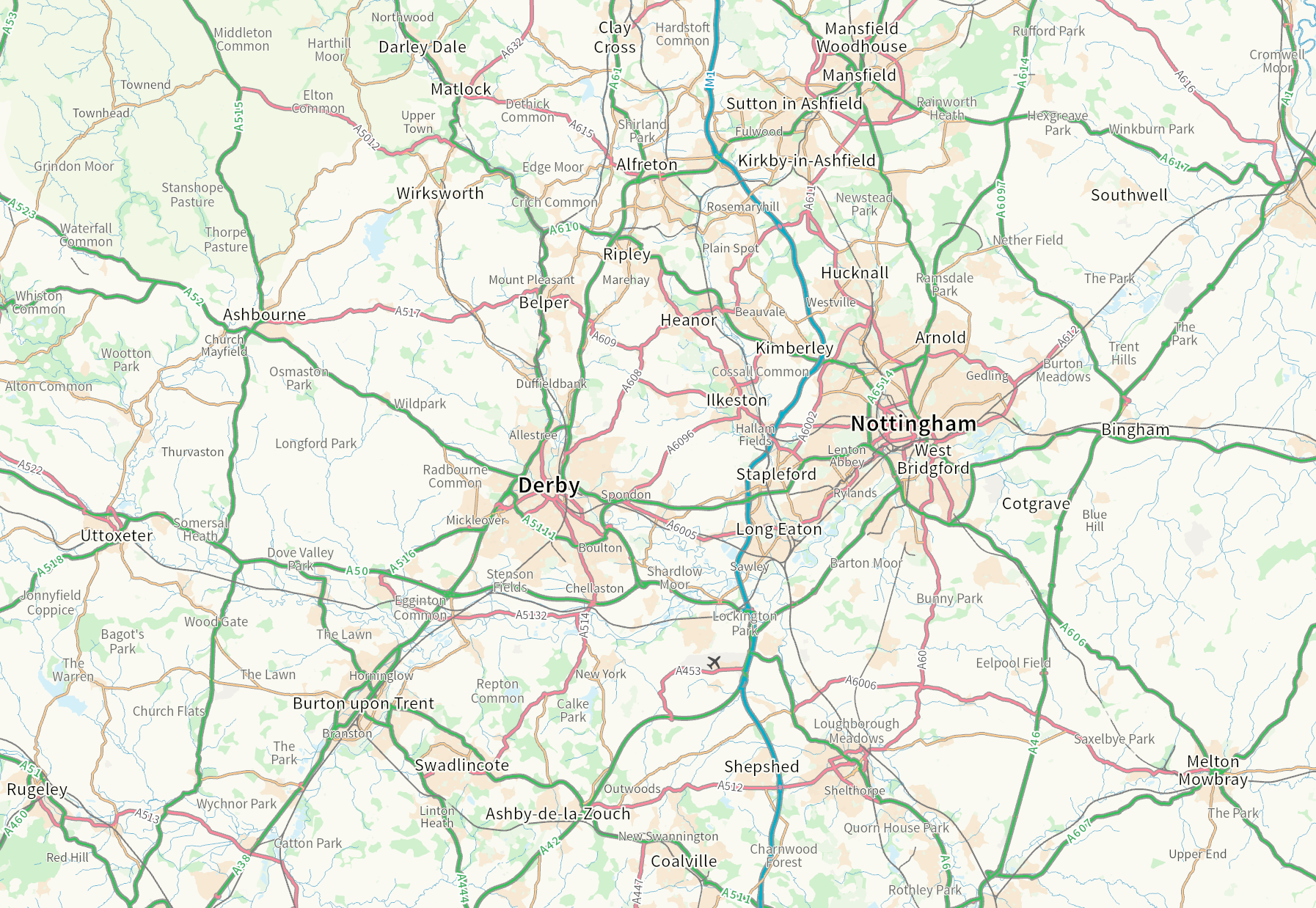

Cover

Road

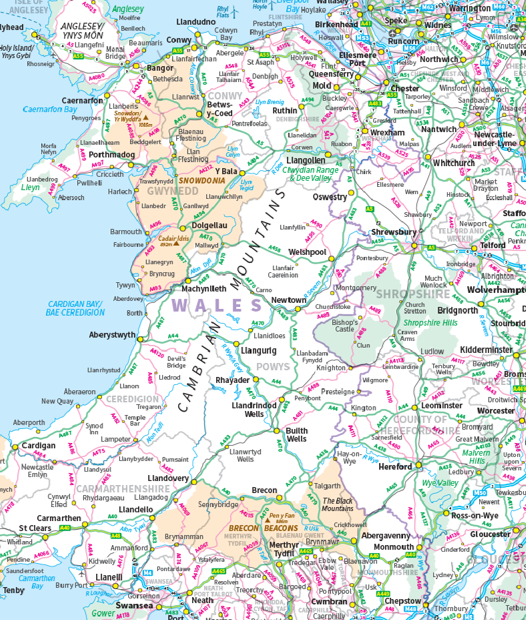

Cover

Leisure

EPSG:3857 tile matrix set

The table below shows the resolution (meters per pixel) and scale of the zoom levels within the EPSG:3857 tile matrix set. The scale is calculated at a DPI of 96. The table also shows which zoom levels are OS OpenData, and which are Premium data.

The zoom levels start at 7 to fit in with the industry standard initial zoom layer. This improves the interoperability of this tile matrix set with third party tools and applications.

Zoom level
Resolution
Scale
Road, Outdoor and Light styles

7

1,223

1:4,622,324

Open data

8

611

1:2,311,162

Open data

9

306

1:1,155,581

Open data

10

153

1:577,791

Open data

11

76

1:288,895

Open data

12

38

1:144,448

Open data

13

19

1:72,224

Open data

14

9.6

1:36,112

Open data

15

4.8

1:18,056

Open data

16

2.4

1:9,028

Open data

17

1.2

1:4,514

Premium data

18

0.60

1:2,257

Premium data

19

0.30

1:1,128

Premium data

20

0.15

1:564

Premium data

EPSG:27700 tile matrix set

The table below shows the resolution (meters per pixel) and scale of the zoom levels within the EPSG:27700 tile matrix set. The scale is calculated at a DPI of 96. The table also shows which zoom levels are OS OpenData, and which are Premium data.

The zoom levels start at 0 rather than at 7 used for the EPSG:3857 tile matrix set, but the range of resolutions & scales is comparable. EPSG:27700 zoom level 0 is similar to EPSG:3857 zoom level 7.

Zoom level
Resolution
Scale
Road, Outdoor and Light styles
Leisure style

0

896.0

1:3,386,450

Open data

Open data

1

448.0

1:1,693,225

Open data

Open data

2

224.0

1:846,612

Open data

Open data

3

112.0

1:423,306

Open data

Open data

4

56.0

1:211,653

Open data

Open data

5

28.0

1:105,827

Open data

Open data

6

14.0

1:52,913

Open data

Premium data

7

7.0

1:26,457

Open data

Premium data

8

3.5

1:13,228

Open data

Premium data

9

1.75

1:6,614

Open data

Premium data

10

0.875

1:3,307

Premium data

n/a

11

0.4375

1:1,654

Premium data

n/a

12

0.21875

1:827

Premium data

n/a

13

0.109375

1:413

Premium data

n/a
